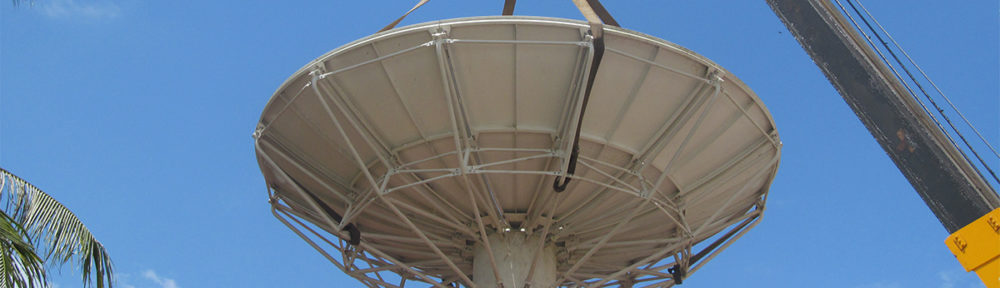

16M Rx Only Antenna

Posted on by

mb0385944316M Rx Only Antenna
Detailed Product Description
1) The reflectors has dual panel
2) The stretch-forming major reflector is of high precision and is made of aluminum
3) Bands available include C-band, KU-band, S-band and L-band.
4) Both linear polarization and circular polarization are available
5) No field alignment request
6) Feed source system and some component parts are installed in the factory to reduce installation time.
7) Excellent in anti-corrosion
8) Survives 125 mph winds
9)Tailored product

Antenna 16m Rx only antenna
C-BAND Ku-BAND
Frequency 3.4-4.2 10.95-12.75
Isolation 35dB
Insertion Loss 0.25/0.3dB 0.3/0.40dB
VSWR 1.25:1
-3dB Beamwidth 0.32° 0.107°
Sidelobe Level 29-25 lgθ
1°≤θ≤20°
First Sidelobe ≤-14dB
Gain 54.21dB 63.71dB
Operational Winds 45mi/h(72km/h)gusts to 60mi/h(97km/h)
Survival Winds 125mi/h(200km/h)
Ambient Temperature -45~50°C
Antenna Optics Dual reflector antenna
Azimuth Travel 0-360° Continuous Adjustment(detach into three grade)
Elevation Travel 0°to 90°
Surface Accuracy 0.5mm(R.M.S)
Relative humidity 0%~100%
Seismic(survival) 0.3Gs horizontal 0.15 Gs vertical

11.3M Rx Only Antenna

Posted on by

mb0385944311.3M Rx Only Antenna
Detailed Product Description
1) The reflectors has dual panel
2) The stretch-forming major reflector is of high precision and is made of aluminum
3) Bands available include C-band, KU-band, S-band and L-band.
4) Both linear polarization and circular polarization are available
5) No field alignment request
6) Feed source system and some component parts are installed in the factory to reduce installation time.
7) Excellent in anti-corrosion
8) Survives 125 mph winds
9) Tailored produc

Antenna 11.3m Rx only antenna
C-BAND Ku-BAND
Frequency 3.4-4.2 10.95-12.75
Insertion Loss 0.25dB 0.3dB
VSWR 1.25:1 1.3:1
Isolation 35dB
-3dB Beamwidth 0.465° 0.156°
Feed Interface WR229 WR75
Sidelobe Level 29-25 lgθ
1°≤θ≤20°
First Sidelobe ≤-14dB
Gain 50.96dB 60.45dB
(F=3.8GHz) (F=11.8GHz)
Noise Temperature 44°K@10° 68°K@10°
Mechanical
Operational Winds 45mi/h(72km/h)gusts to 60mi/h(97km/h)
Survival Winds 125mi/h(200km/h)
Surface Accuracy 0.5mm(R.M.S)
Ambient Temperature -45~50°C
Environmental
Antenna Optics Dual reflector antenna
Azimuth Travel ±85° Continuous Adjustment(detach into three grade)
Relative humidity 10%~100%
Elevation Travel 0°to 90°
Seismic(survival) 0.3Gs horizontal 0.15 Gs vertical

9M Rx Only Antenna

Posted on by

mb038594439M Rx Only Antenna
Detailed Product Description
1)Our 9m antenna has dual reflectors, and a high precision stretch-forming aluminum reflector
2) Bands available include C-band,KU-band,S-band and L-band.
3) We can provide linear polarization and circular polarization for your choice
4) No field alignment request
5) To shorten the installation time,the feed source system and some components are pre-assembled in the factory.
6) Strong anti-corrosion property
7) Survives winds of up to 125 mph
8) Tailor-made product

Antenna 9m Rx only antenna
C-BAND Ku-BAND
Frequency 3.4-4.2GHz 10.95-12.75GHz
Insertion Loss 0.25dB 0.3dB
VSWR 1.25:1 1.3:1
Isolation 35dB
Sidelobe Level 29-25lgθ 29-25lgθ
1°≤θ≤ 20° 1°≤θ≤ 20°
Feed Interface WR229 WR75
-3dB Beamwidth 0.568° 0.191°
First Sidelobe ≤-14dB
Gain 49.22dB(F=3.8GHz) 58.71dB(F=11.8GHz)
Noise Temperature 42°K@10° 65°K@10°
Mechanical
Wind Loading 72kmph operational (Maintain Precision)
97kmph operational (Decrease Precision)
200kmph Survival (Fixed Heavenward)
Environmental Data
Antenna Optics Dual reflector antenna
Elevation Adjustment 0°to 90°Continuous Fine Adjustment
Azimuth Adjustment ±85° Continuous Adjustment(detach into three grade)
Temperature -45~50°C
Relative Humidity 0%~100%
Seismic(survival) 0.3Gs horizontal 0.15 Gs vertical

7.3M Rx Only Antenna

Posted on by

mb038594437.3M Rx Only Antenna
Detailed Product Description
(1)Our 7.3m antenna has dual reflectors, and a high precision stretch-forming aluminum reflector.
(2)There are various bands for your choice including C-Band, Ku-Band, Ka-Band, S-Band, and L-Band
(3) Both linear polarization and circular polarization are available
(4) No field alignment required
(5)To shorten the installation time,the feed source system and some components are pre-assembled in the factory.
(6) Excellent in anti-corrosion
(7) Survives winds of up to 125 mph
(8) Tailored product

Antenna 7.3m Rx only antenna
C-BAND Ku-BAND
Frequency 3.4-4.2GHz 10.95-12.75GHz
Feed Interface WR229 WR75
-3dB Beamwidth 0.701° 0.235°
Isolation 35dB
VSWR 1.25:1 1.3:1
Insertion Loss 0.25dB 0.3dB
Gain 47.40dB(F=3.8GHz) 56.89dB(F=11.8GHz)
Noise Temperature 43°K@10° 64°K@10°
Mechanical
Sidelobe Level 32-25lgθ 29-25lgθ
1°≤θ≤ 20° 1°≤θ≤ 20°
First Sidelobe ≤-14d
Wind Loading 45mph 72kmph operational (Maintain Precision)
60mph 97kmph operational (Decrease Precision)
125mph 200kmph Survival (Fixed Heavenward)
Environmental Data
Antenna Optics Dual reflector antenna
Elevation Adjustment 0°to 90°Continuous Fine Adjustment
Azimuth Adjustment ±85° Continuous Adjustment(detach into three grade)
Seismic(survival) 0.3Gs horizontal 0.15 Gs vertical
Relative Humidity 0%~100%
Temperature -45~50°C

6.2M Rx Only Antenna

Posted on by

mb038594436.2M Rx Only Antenna
Detailed Product Description
(1)Our 6.2m antenna has dual reflectors, and a high precision stretch-forming aluminum reflector.
(2) There are various bands for your choice including C-Band, Ku-Band, Ka-Band, S-Band, X-band,and L-Band.
(3) You may either choose linear polarization or circular polarization
(4)You may either choose single port or dual port
(5)Both manual and motorized are available
(6) No field alignment required
(7)To shorten the installation time,the feed source system and some components are pre-assembled in the factory.
(8)Excellent in anti-corrosion
(9)Survives 125 mph winds
(10)Customize product

Antenna 6.2m Rx only antenna
C-BAND Ku-BAND
Frequency 3.4-4.2GHz 10.95-12.75GHz
Insertion Loss 0.25dB 0.3dB
VSWR 1.25:1 1.3:1
Isolation 35dB
Sidelobe Level 32-25lgθ 32-25lgθ
1°≤θ≤ 20° 1°≤θ≤ 20°
Feed Interface WR229 WR75
-3dB Beamwidth 0.825° 0.277°
Mechanical
Gain 45.98 55.47dB
(F=3.8GHz) (F=11.8GHz)
Noise Temperature 36°K@10° 50°K@10°
First Sidelobe ≤-14dB
Elevation Adjustment 0°to 90°Continuous Fine Adjustment
Antenna Optics Dual reflectors antenna
Azimuth Adjustment ±85° Continuous Adjustment(detach into three grade)
Environmental
Wind Loading 45mph 72kmph operational (Maintain Precision)
60mph 97kmph operational (Decrease Precision)
125mph 200kmph Survival (Fixed Heavenward)
Seismic(survival) 0.3Gs horizontal 0.15 Gs vertical
Relative Humidity 0%~100%
Temperature -45~50°C

6M Rx Only Antenna

Posted on by

mb038594436M Rx Only Antenna
Detailed Product Description
1) Stretch formed aluminum major reflector with high precision
2) Band of our antennas include C-Band, Ku-Band, S-Band, and L-Band.
3) linear polarization and circular polarization are available.
4) There are single port and dual port for your choice.
5) You can choose manual antennas or motorized antennas
6) No field alignment required
7) There is no need to adjust it on-site,which saves time and energy
8) Strong anti-corrosion property
9) Survives winds of up to125 mph
10) Customiz product

Antenna 6.0m Rx only antenna
C-BAND Ku-BAND
Frequency 3.4-4.2GHz 10.95-12.75GHz
Insertion Loss 0.25dB 0.3dB
VSWR 1.25:1 1.3:1
Isolation 35dB
Feed Interface WR229 WR75
-3dB Beamwidth 0.887° 0.298°
First Sidelobe ≤-14dB
Noise Temperature 35°K@10° 50°K@10°
Sidelobe Level 32-25lgθ 29-25lgθ
1°≤θ≤ 20° 1°≤θ≤ 20°
Gain 45.35dB(F=3.8GHz) 54.81dB(F=11.8GHz)
Mechanical
Antenna Optics Prime-focus antenna
Elevation Adjustment 0°to 90°Continuous Fine Adjustment
Azimuth Adjustment Manual 0°to 360°Continuous Fine Adjustment
motorized ±85° Continuous Adjustment(detach into three grade)
Environmental
Wind Loading 45mph 72kmph operational (Maintain Precision)
60mph 97kmph operational (Decrease Precision)
125mph 200kmph Survival (Fixed Heavenward)
Seismic(survival) 0.3Gs horizontal 0.15 Gs vertical
Relative Humidity 0%~100%
Temperature -45~50°C

5.36M Rx Only Antenna

Posted on by

mb038594435.36M Rx Only Antenna

Detailed Product Description

(1)The reflectors have dual panel

(2)The major stretch-forming aluminum reflector of our 5.36m antenna is of high precision.

(3)Band of our antennas include C-Band, Ku-Band, Ka-Band, S-Band, X-band,and L-Band.

(4)Both linear polarization and circular polarization are available

(5)We can provide single port and dual port for your choice

(6)We can provide manual antenna and motorized antenna for your choice

(7) No field alignment required

(8) Feed source system and some component parts are installed in the factory to reduce installation time. There is no need for on-site precision adjustment.

(9)Well in anti-corrosion

(10)It has ability to withstand severe winds of up to 125mph

(11)Tailor-made product

Antenna 5.36m Rx only antenna
C-BAND Ku-BAND
Frequency 3.4-4.2GHz 10.95-12.75GHz
Insertion Loss 0.25dB
VSWR 1.25:1
Isolation 35dB
-3dB Beamwidth 0.92° 0.311°
Feed Interface CPR-229G WR75
Gain 45.03 54.46dB
(F=3.8GHz) (F=11.8GHz)
Mechanical
Sidelobe Level 32-25lgθ 32-25lgθ
1°≤θ≤ 20° 1°≤θ≤ 20°
Noise Temperature 35°K@10° 45°K@10°
First Sidelobe ≤-14dB
Wind Loading 45mph 72kmph operational (Maintain Precision)
60mph 97kmph operational (Decrease Precision)
125mph 200kmph Survival (Fixed Heavenward)
Environmental
Antenna Optics Dual reflectors antenna
Elevation Adjustment 15°to 90°Continuous Fine Adjustment
Azimuth Adjustment ±85° Continuous Adjustment(detach into three grade)
Relative Humidity 0%~100%
Temperature -45~50°C
Seismic(survival) 0.3Gs horizontal 0.15 Gs vertical

4.5M Rx Only Antenna

Posted on by

mb038594434.5M Rx Only Antenna
Detailed Product Description
4.5m Rx only antenna
(1)The reflector has dual reflectors
(2) The stretch forming aluminum reflector is of high precision
(3)Both C-band and Ku-Band are available
(4)We can provide linear polarization and circular polarization for your choice
(5)You can choose single port or dual port
(6)Antenna available are motorized and manual.
(7)Well in anti-corrosion
(8) It has ability to withstand severe winds of up to 125mph
(9)Customized product

Antenna 4.5m Rx only antenna
C-BAND Ku-BAND
Frequency 3.4-4.2GHz 10.95-12.75GHz
Feed Interface WR229 WR75
-3dB Beamwidth 1.137° 0.381°
Isolation 35dB
VSWR 1.25:1 1.3:1
Insertion Loss 0.25dB 0.3dB
Gain 43.19dB(F=3.8GHz) 52.69dB(F=11.8GHz)
Noise Temperature 35°K@10° 52°K@10°
First Sidelobe ≤-14dB
Sidelobe Level 32-25lgθ 32-25lgθ
1°≤θ≤ 20° 1°≤θ≤ 20°
Mechanical
Antenna Optics Dual reflector antenna
Elevation Adjustment 0°to 90°Continuous Fine Adjustment
Azimuth Adjustment manual 0°to 360°Continuous Fine Adjustment
motorized ±85° Continuous Adjustment(detach into three grade)
Environmental
Wind Loading 45mph 72kmph operational (Maintain Precision)
60mph 97kmph operational (Decrease Precision)
125mph 200kmph Survival (Fixed Heavenward)
Temperature -45~50°C
Relative Humidity 0%~100%
Seismic(survival) 0.3Gs horizontal 0.15 Gs vertical

4.3M Rx Only Antenna

Posted on by

mb038594434.3M Rx Only Antenna
Detailed Product Description
(1)The stretch forming aluminum reflector is of high precision
(2)We can provide C-band and Ku-Band for your choice
(3)Both linear polarization and circular polarization are available
(4)You can choose single port or dual port
(5)Both manual and motorized are available
(6)Fashionable design, easy installation and adjustment
(7) Excellent in anti-corrosion
(8)Well in stability
(9)Customize product

Antenna 4.3m Rx only antenna
C-BAND Ku-BAND
Frequency 3.4-4.2GHz 10.95-12.75GHz
Isolation 35dB
Feed Interface WR229 WR75
VSWR 1.3:1
-3dB Beamwidth 1.24° 0.417°
Insertion Loss 0.25dB 0.3dB
Gain 42.45dB(F=3.8GHz) 51.92dB(F=11.8GHz)
Noise Temperature 36°K@10° 52°K@10°
First Sidelobe ≤-14dB
Sidelobe Level 32-25lgθ 29-25lgθ
1°≤θ≤ 20° 1°≤θ≤ 20°
Environmental Mechanical
Antenna Optics Prime-focus antenna
Elevation Adjustment 15° to 90°Continuous Fine Adjustment
Azimuth Adjustment motorized ±85° Continuous Adjustment(detach into three grade)
manual 0°to 360°Continuous Fine Adjustment
Mechanical
Wind Loading 45mph 72kmph operational (Maintain Precision)
60mph 97kmph operational (Decrease Precision)
125mph 200kmph Survival (Fixed Heavenward)
Seismic(survival) 0.3Gs horizontal 0.15 Gs vertical
Relative Humidity 0%~100%
Temperature -45~50°C

3.7M Rx Only Antenna

Posted on by

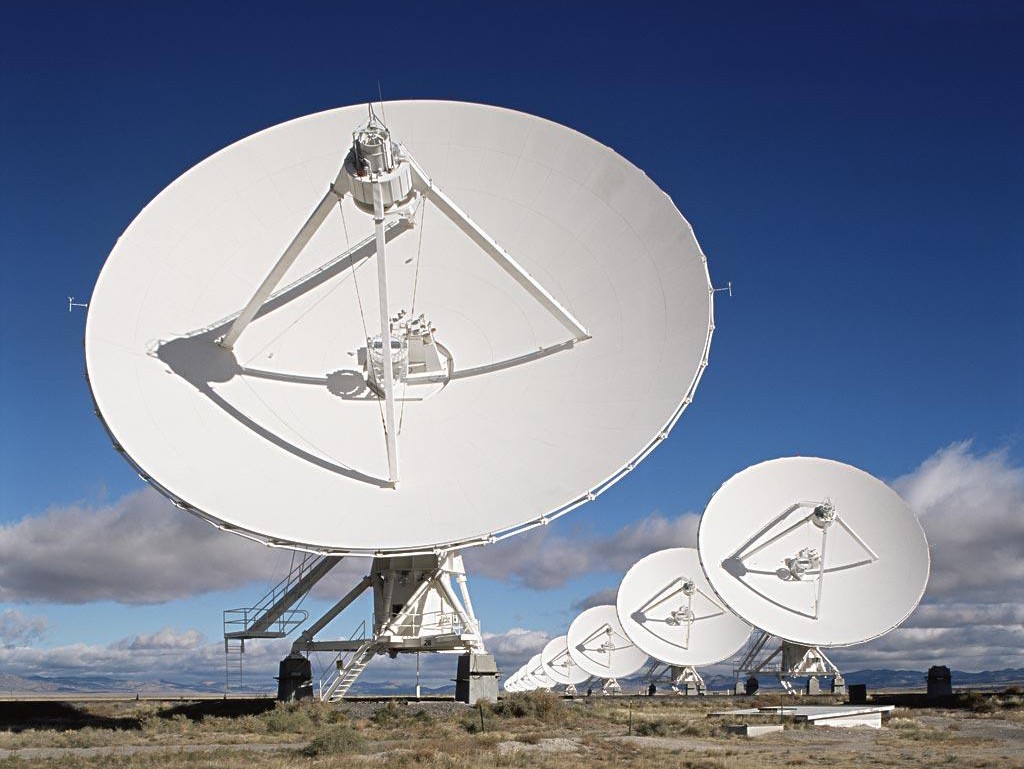

mb038594433.7M Rx Only Antenna
Detailed Product Description
(1) The stretch forming aluminum reflector is of high precision.
(2)Both the C-Band and Ku-Band are available.
(3)Both linear and circular polarization is available
(4)You may choose single port or dual port.
(5)Our 3.7m antenna has a fashionable design and is easy to install and adjust.
(6)Strong anti-corrosive property
(7)Good stability
(8)Customized product

Antenna 3.7m Rx only antenna
C-BAND Ku-BAND
Frequency 3.4-4.2GHz 10.95-12.75GHz
Isolation 35dB
Feed Interface WR229 WR75/F
VSWR 1.3:1
-3dB Beamwidth 1.44° 0.484°
Insertion Loss 0.25dB 0.3dB
Sidelobe Level 32-25lgθ 29-25lgθ
1°≤θ≤ 20° 1°≤θ≤ 20°
First Sidelobe ≤-14dB
Noise Temperature 35°K@10° 49°K@10°
Sidelobe Level 32-25lgθ
1°≤θ≤ 20° 1°≤θ≤ 20°
Gain 41.15dB(F=3.8GHz) 50.61dB(F=11.8GHz)
Mechanical
Antenna Optics Prime-focus antenna
Elevation Adjustment 10° to 90°Continuous Fine Adjustment
Azimuth Adjustment motorized ±85° Continuous Adjustment(detach into three grade)
manual 0°to 360°Continuous Fine Adjustment
Environmental
Wind Loading 45mph 72kmph operational (Maintain Precision)
60mph 97kmph operational (Decrease Precision)
125mph 200kmph Survival (Fixed Heavenward)
Relative Humidity 0%~100%
Seismic(survival) 0.3Gs horizontal 0.15 Gs vertical
Temperature -45~50°C
